CC3D Carbon V4

This frame was designed for AP and FPV with the idea of reducing as many vibrations to the camera as possible. The carbon tubes and rubber dampers are common parts for XAircraft frames that can be purchased at a low cost. The V shape allows cameras to be mounted above the loading pipes without the need for extended landing gear hanging beneath the frame. It opens up the space between the front arms to allow a prop-free view from the camera.

Bill of materials:

[Qty. 4] MT-2208-18 1100KV Motors

[Qty. 4] 10A Turnigy Plush ESCs

[Qty. 1] M3x8mm Bolts (20)

[Qty. 1] 18AWG Red wire

[Qty. 1] 18AWG Black Wire

[Qty. 1] 2200mAh 3S 45-50C Nano Tech LiPo

[Qty. 2] 8×4.5 Carbon Props

[Qty. 4] 300x10mm Carbon Tube (2)

[Qty. 1] 10mm Plug (4)

[Qty. 3] Rubber Dampin Rings (4)

[Qty. 1] OpenPilot CC3D

[Qty. 1] 400mW 5.8GHz Video TX

[Qty. 1] V8FR-II Receiver



Assembly:

(Custom frame components available here)

All parts can be assembled by applying CA glue to the inside of the carbon tubes. Applying CA accelerator to the plastic parts will help reduce bonding time.

IMG_4217

IMG_4213

IMG_4215

IMG_4211



IMG_4294



Cut two 138mm tubes and two 122mm tubes.

IMG_4295

IMG_4297

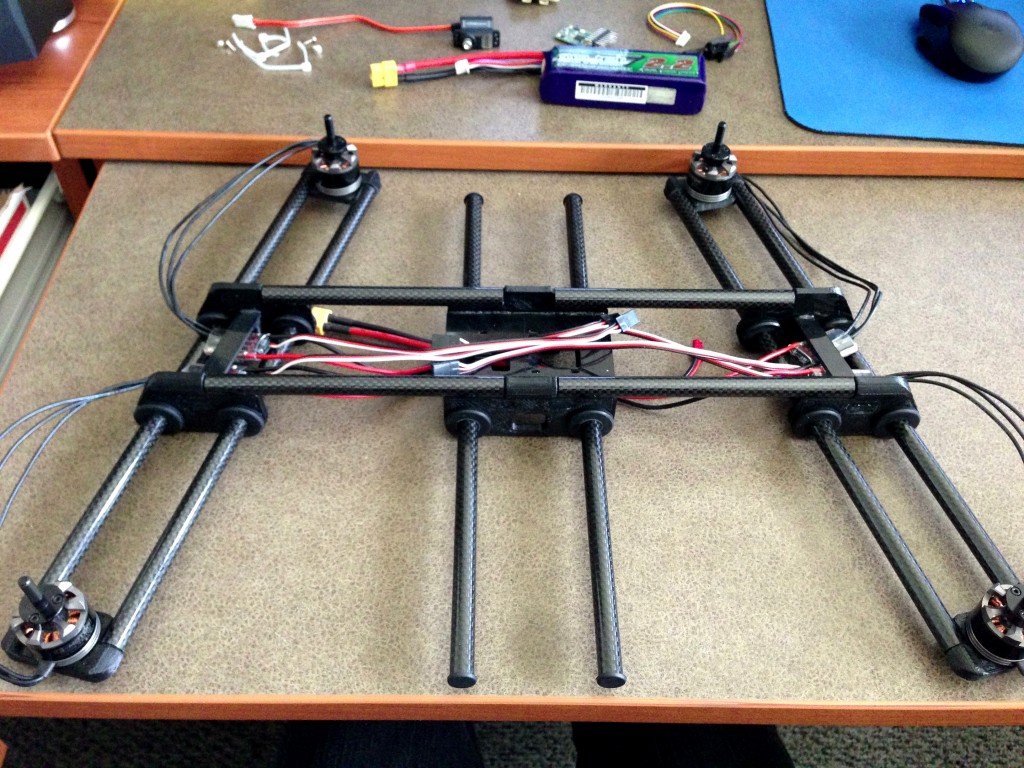

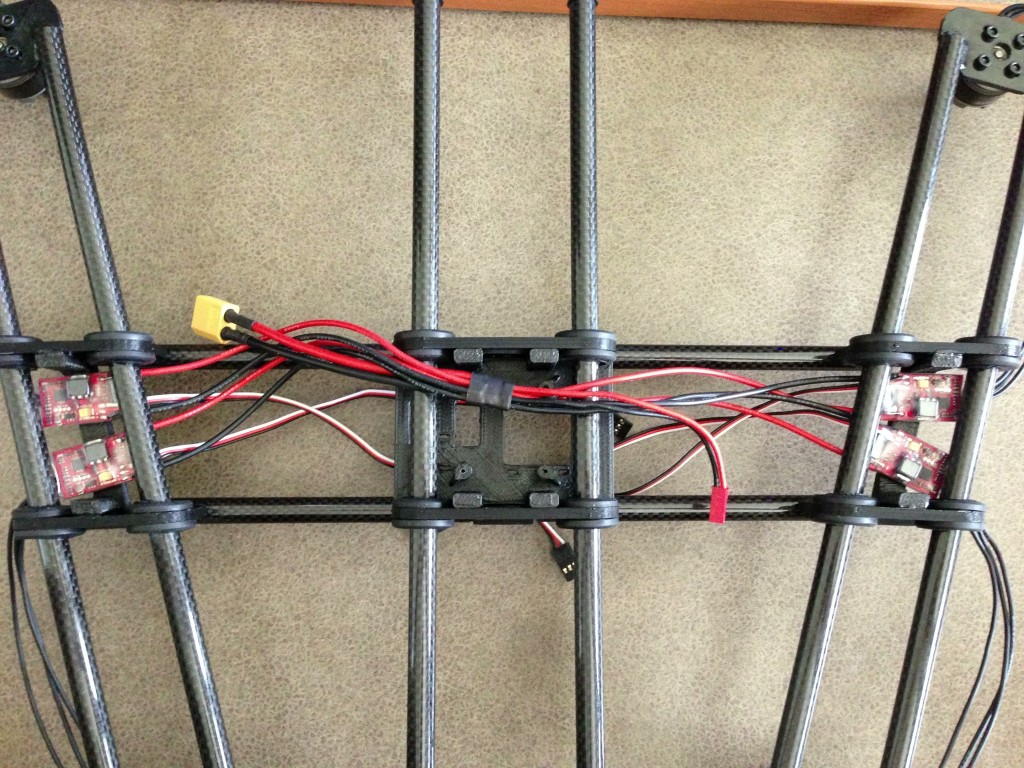

IMG_4316IMG_4317IMG_4318

IMG_4320

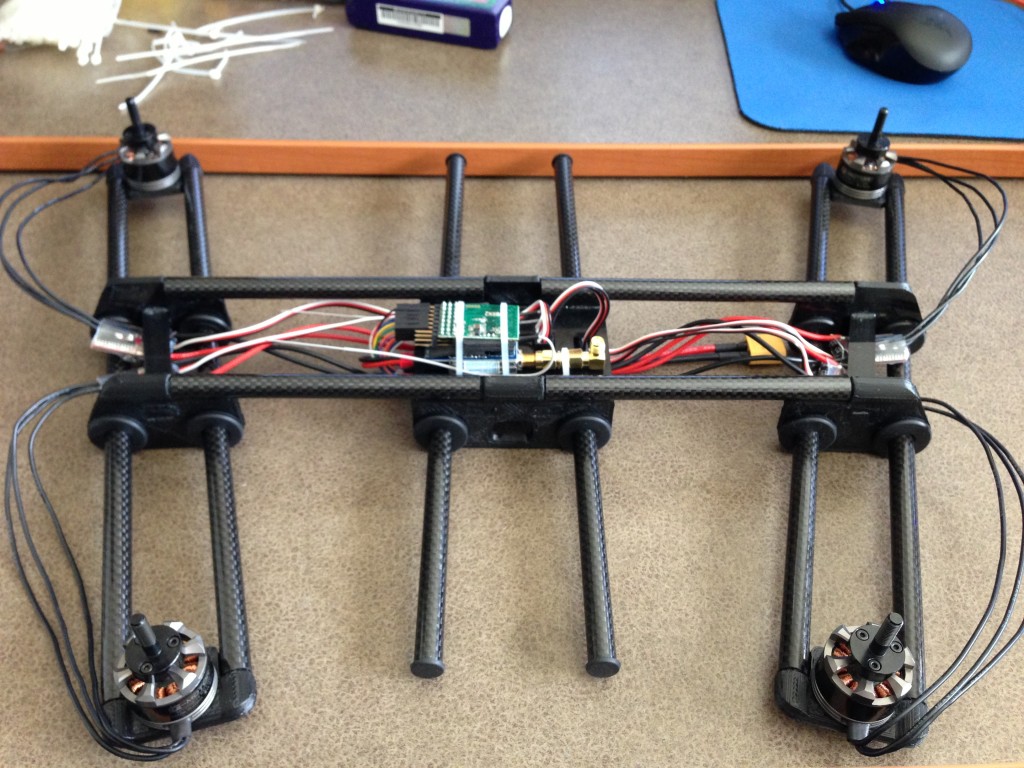

Set the video transmitter heat sink into the slot and secure the receiver to the top of it using sip ties.

IMG_4319

Secure the CC3D using four M2x8mm self tapping screws.

IMG_4326

IMG_4324

Software configuration:

Choose custom mix and apply the following mixer settings in the OpenPilot GCS.

mixer
