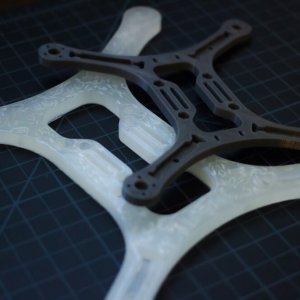

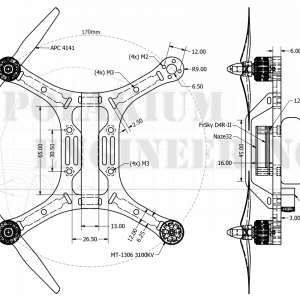

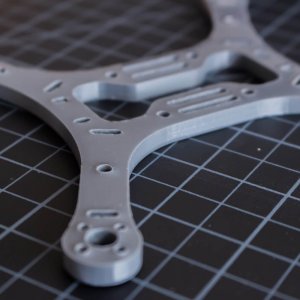

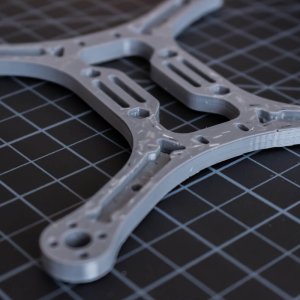

This 170mm, 30 gram micro multicopter frame is the latest of the Super Simple multicopter frames. It is designed to be minimal in complexity with all the same features of the larger SSHQuad PRO. Carefully designed and cast from a high-strength polyurethane resin, the SSHQuad Micro exhibits just enough flexibility to absorb common impacts, while providing convenient mounting options at a reduced weight. The single piece axial structure of the frame prevents side impact forces from shearing the arms off in a rolling crash. This frame is designed to support many standard 30.5mm flight controllers including the CC3D, Naze32, PX4, etc.
** Dark-grey Stealth fiber-glass infused frame is cast from a high-strength polyurethane with glass fiber elements, adding both strength and a unique appearance.
Build Tips:
- Thick CA glue with CA accelerator is an excellent choice for quick repairs.
- Ensure mounting holes are flat using a reamer, hobby knife or hand file.
| Weight | 2.5 oz |
|---|---|
| Flight Controller | KK-Mini, CC3D, Naze32, Flip, PX4, Micro APM |
| Speed Controllers | Plush 6A, RTF mini 4in1 12A HV |
| Battery | 1450~1000mAh 2~3S LiPo |
| Motors | Tiger MT-1306, DYS BX1306, Sunnysky X1306S, RCX H1306, (4x 12mm M2) |
| Props | 4040 2-Blade, APC 4141 |
| Hardware | (4) 5.6x8mm M3 Nylon Spacers, (8) M3 Nylon Nuts, (4) M3x20mm Nylon Bolt, (16) M2x8mm Bolts, Zip Ties |

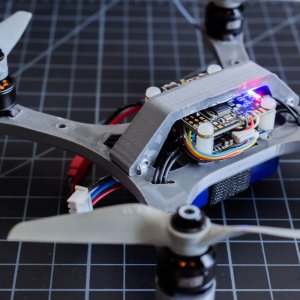

| Other | ReadyMadeRC Pico-Wide Camera, FrSky D4R-II |
