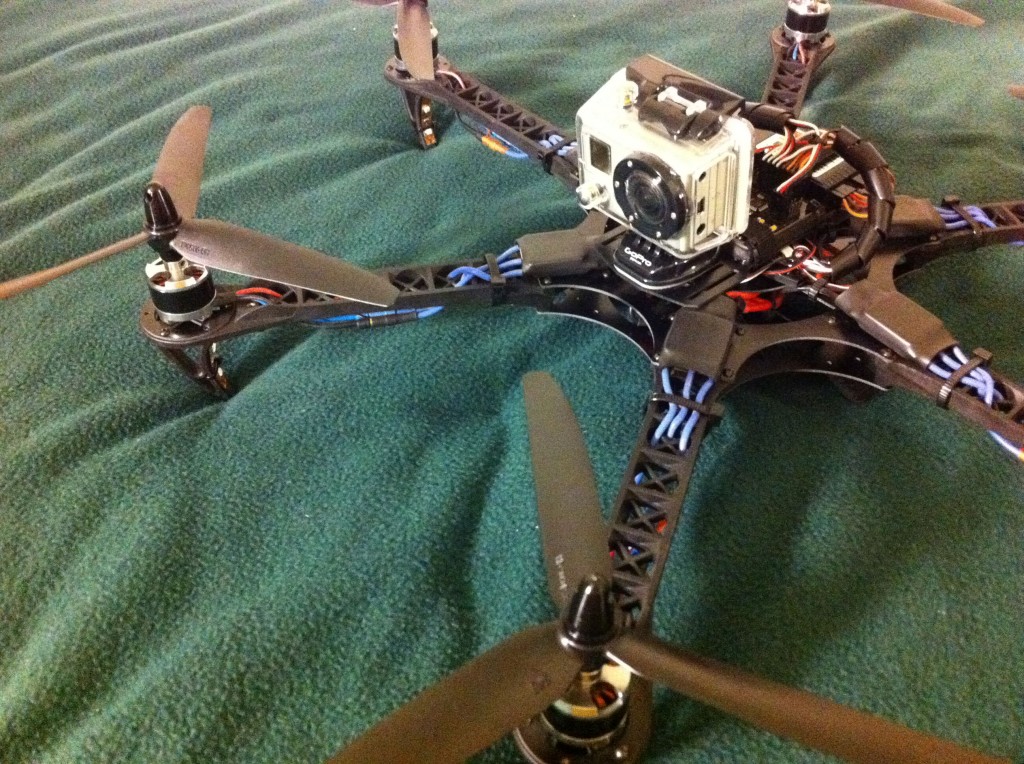

Xaircraft Hexacopter Red LED Lighting Effects

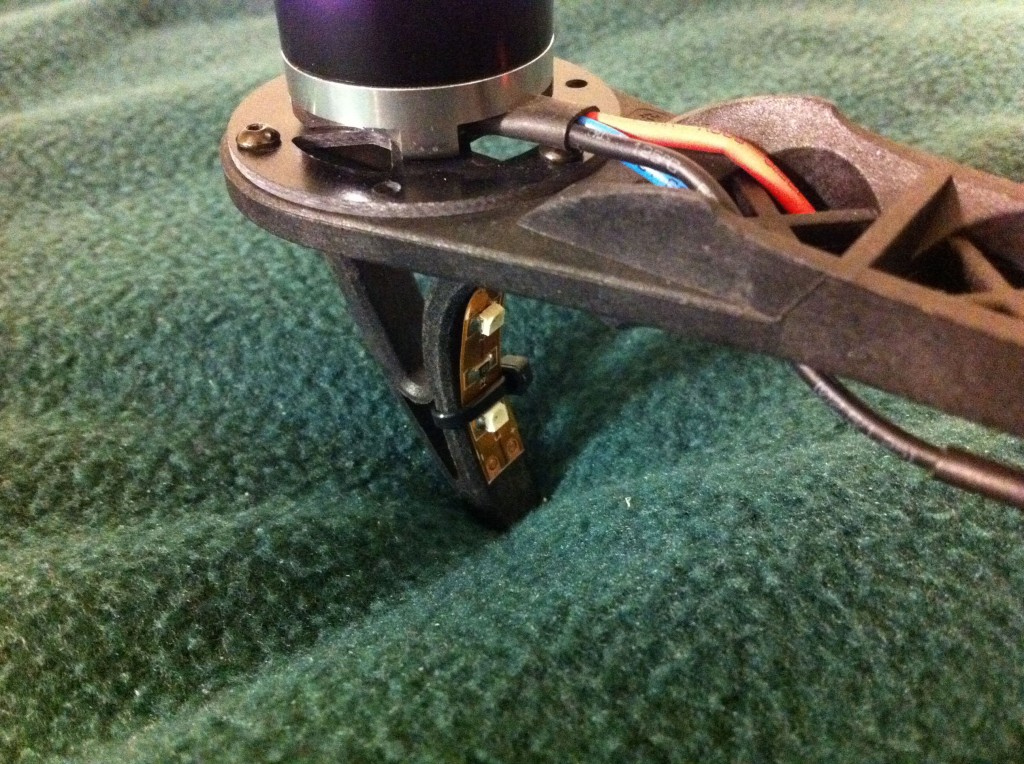

I decided to rewire my current lighting setup after switching out the Xaircraft camera skids for the standard claws. I used six segments of Hobbyking Red LEDs with 3 LEDs per segment. Using servo wires I soldered a connection between the bullets connectors of each motor and the LEDs. It does not matter which two motor wires you choose to connect the LEDs. The polarity of the LEDs makes no difference. Each LED is triggered whenever the diode receives an electrical pulse going forward with the polarity of the diode. As the throttle of the aircraft is increased, the motors are driven at a higher frequency and they produce more intense light. It operates by the same principal as a household dimmer switch on a lamp.
